Times-7 A5531V Vertically Polarised RFID Antenna: An Ultra-Slim, High-Performance RFID Solution for Modern Businesses

Introduction – RFID and the Need for New Solutions

In the era of digital transformation and the Internet of Things (IoT), RFID (Radio Frequency Identification) technology is playing an increasingly vital role in managing assets, goods, events, and people. Compared to traditional barcodes, RFID offers superior advantages: the ability to read multiple tags simultaneously, no direct line-of-sight scanning, longer read range, and faster performance.

However, for any RFID system to operate effectively, the RFID antenna is the critical component. The antenna determines tag readability, accuracy, coverage, and overall system stability. Especially in challenging environments such as crowded events, sports tracks, logistics hubs, or access control areas, the demand for a slim, durable, underfloor antenna has become increasingly urgent.

That is why Times-7 – a world leader in RFID antenna technology – developed the SlimLine A5531 series. Within this series, the A5531V – Vertically Polarised Antenna stands out with its ultra-slim 10 mm profile, 10 dBi gain, and vertical polarisation, delivering robust, reliable RFID performance across a wide range of applications.

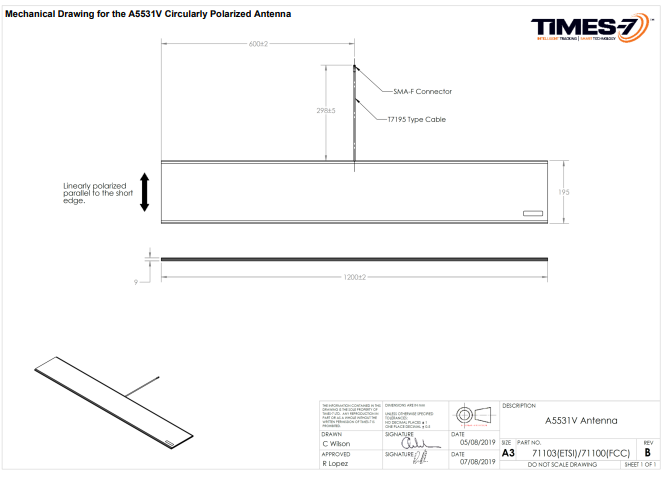

Introducing the A5531V – Design, Specifications, and Vertical Polarisation

The A5531V is a specialised variant of the SlimLine A5531 series from Times-7, engineered for underfloor RFID applications. It is optimised to perform effectively even when people, trolleys, or goods move directly above it.

The most notable feature of the A5531V is its vertical polarisation. Compared to the A5531H (horizontally polarised) model, the A5531V is particularly suited to applications where RFID tags are oriented vertically – for example, badges worn on clothing, lanyards, or labels affixed upright on cartons and pallets.

Key Features in Detail – Practical Benefits

Ultra-Slim Design – Optimised for Space and Aesthetics

At just 10 mm thick, the A5531V is almost “invisible” when installed under the floor. This is a huge advantage in environments requiring a clean, professional aesthetic such as conference centres, international events, or retail showrooms.

High 10 dBi Gain – Powerful Read Performance

The antenna provides wide, strong coverage, ensuring the ability to read multiple tags simultaneously with high accuracy. In practice, this reduces missed reads and enables businesses to manage the flow of people, assets, or goods more effectively.

Vertical Polarisation – Optimised for Upright Tag Orientation

Unlike horizontal polarisation, vertical polarisation is especially effective for applications where RFID tags are carried or affixed in an upright position – such as employee badges, race bibs, event passes, or vertical pallet labels. This ensures more consistent, stable tag detection, even when tags are not perfectly aligned.

High Load-Bearing Capacity – Safe in Real Environments

The A5531V is designed to withstand significant weight, allowing safe installation in high-traffic areas where people, trolleys, or light equipment pass directly overhead. This is particularly critical in event and logistics environments, where the antenna must be discreet yet highly durable.

IP53 Protection – Durable in Demanding Conditions

With its IP53 rating, the A5531V is resistant to dust and light water exposure. This makes it reliable in warehouses, retail centres, manufacturing plants, or semi-outdoor covered areas.

Business Benefits

• Improved operational efficiency – Automatically captures data from goods, staff, or customers without manual scanning.

• Reduced labour costs – Less reliance on staff for manual checks, lowering long-term operating expenses.

• Clean and professional environment – Underfloor installation keeps spaces neat and visually appealing, creating a premium impression.

• Enhanced customer experience – Fast, seamless check-in and access control improve user satisfaction.

• Long-term investment – High durability and global frequency support make it suitable for businesses expanding internationally.



Real-World Applications

• Events & conferences – Automated attendee check-in and access control.

• Sports timing (marathons, triathlons) – Accurate time capture at start/finish lines.

• Smart retail – Tracking customer movement and enabling loyalty marketing.

• Logistics & warehousing – Monitoring pallets, trolleys, and goods in transit.

• Access control – Deployed in office buildings, factories, and secure facilities.

Why Choose Times-7?

• Trusted global brand – Times-7, headquartered in New Zealand, is a leading RFID antenna manufacturer trusted in over 50 countries.

• Renowned SlimLine series – Proven ultra-slim, durable, high-performance antennas used in thousands of projects worldwide.

• Exceptional durability – Built to handle heavy use and deliver stable, long-term performance.

• Worldwide support – Backed by a strong distribution and technical support network.

FAQ – Frequently Asked Questions

Q1: How does the A5531V differ from the A5531H?
👉 The key difference is polarisation. The A5531V uses vertical polarisation, best for vertically oriented tags, while the A5531H uses horizontal polarisation, better for horizontally placed tags.

Q2: Can the A5531V be installed outdoors?
👉 It is IP53-rated, making it suitable for semi-outdoor use (with overhead cover). For harsher environments, additional enclosure protection is recommended.

Q3: Can the A5531V handle heavy loads?
👉 Yes. It is designed to withstand significant weight, ensuring safe use even under foot traffic or trolleys.

Q4: Which frequency bands does the A5531V support?
👉 Both FCC (902–928 MHz) and ETSI (865–868 MHz), making it suitable for global deployment.

Conclusion

The Times-7 A5531V Vertically Polarised RFID Antenna is the ideal choice for businesses seeking a slim, durable, high-performance RFID solution. With its 10 mm profile, 10 dBi gain, vertical polarisation, and high load-bearing capacity, it delivers exceptional results in events, sports, retail, logistics, and access control.

👉 If your business is looking for an RFID solution that is reliable, flexible, and future-proof, choose the A5531V – Times-7 today to enhance operational efficiency and optimise costs.
