Alien slimline RFID white wet inlay (ALN-9745, Higgs-4)

Alien Slimline RFID White Wet Inlay (ALN-9745, Higgs-4)

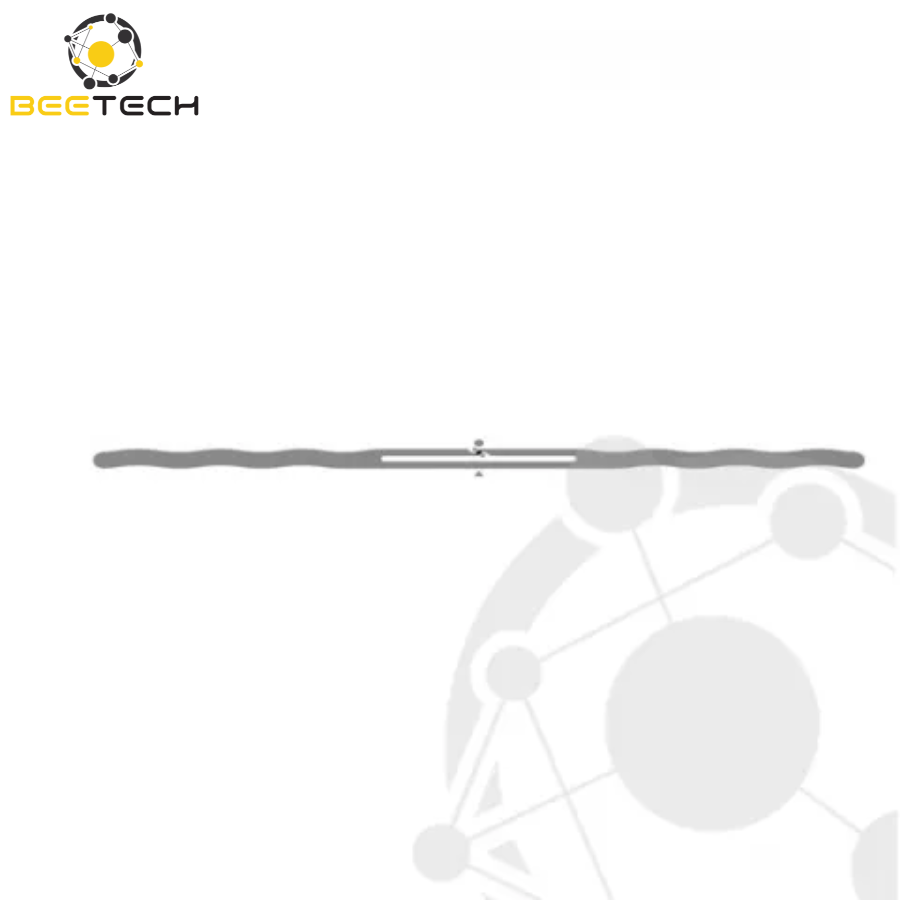

Powered by Alien®’s groundbreaking Higgs™ 4 UHF IC and its improved Slimline antenna design, the ALN-9745 provides top-tier EPC Gen 2 performance and reliability in an extremely narrow form factor. This makes it ideal for attachment to narrow objects and boxes, as well as for applications involving small labels. With its Higgs-4 core, the Slimline inlay delivers next-generation read and write performance, yet it remains fully optimized for high-volume business, retail, and apparel applications.

The ALN-9745 features optimized memory capacity, including a 32-bit TID, a unique 64-bit TID for authentication and next-generation serialization applications, a 128-bit EPC memory bank, and a 128-bit user memory for distributed data applications. It also supports read and write password capabilities to prevent unauthorized viewing and modification of tag data. The ALN-9745 complies with WorldTag, ensuring consistent operation across frequencies in regions including the Americas, Europe, the Middle East, Asia, and Africa.

Features and Specifications:

• Designed to meet EPCglobal Gen2 (V1.2.0) and ISO / IEC 18000-6C standards.
• Operates globally on RFID frequencies (840-960 MHz).
• Pre-programmed with a unique, unalterable 64-bit serial number.
• User memory can be locked with Perma-Lock, with password-protected read capabilities in a 32-bit block.
• Leading read/write performance.
• Bulk encoding with BlastWrite™ and QuickWrite™.
• Dynamic Authentication™ – Anti-counterfeiting/anti-duplication technology.
• Exceptional operational range, up to 11 meters with an appropriate antenna.

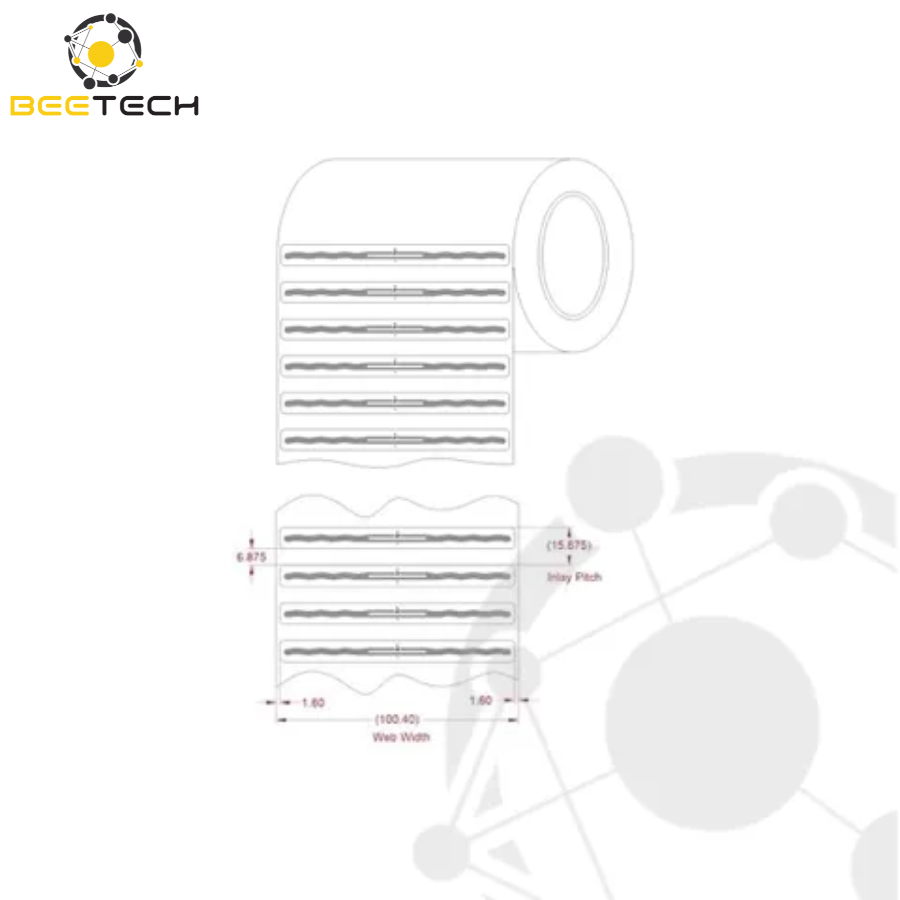

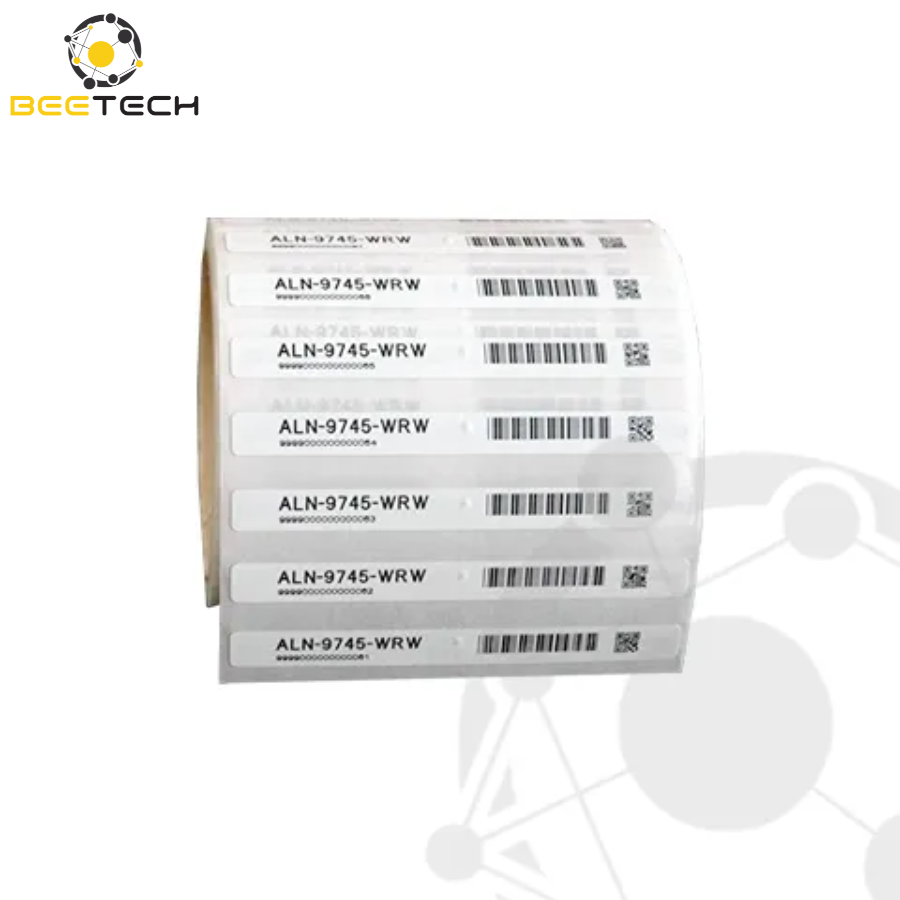

• Available in high-yield dry/wet inlay roll forms with high performance.



Why Buy This Tag?

The ALN-9745 Slimline RFID inlay is a high-performance tag designed for ultra-thin applications. It provides all the benefits of the Higgs™ 4 technology in a tag that fits into extremely narrow spaces, making it perfect for tight spaces or applications with space limitations.
