Alien Squiggle RFID White Wet Inlay (ALN-9740, Higgs-4)

Alien Squiggle RFID White Wet Inlay (ALN-9740, Higgs-4)

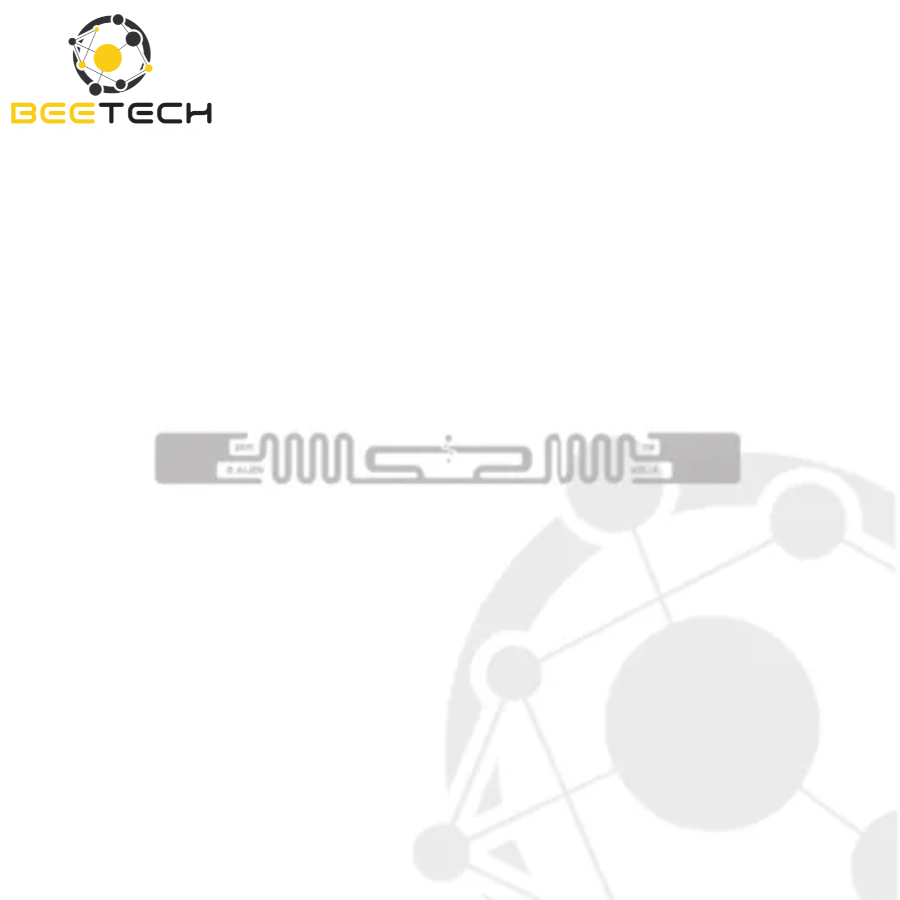

Alien ALN-9740 Squiggle is a high-performance, versatile RFID inlay designed for a wide range of applications, including Race Timing, and offers all the advantages of Higgs-4 technology combined with an enhanced Squiggle antenna design. Powered by the Alien Higgs-4 IC, ALN-9740 delivers superior reading and writing performance, with industry-leading EPC Gen 2 reliability. The ALN-9740 inlay is compliant with global tag standards, ensuring consistent operation across multiple frequency ranges in North America, Europe, Asia, Africa, and the Middle East.

The ALN-9740 features an optimized memory footprint, including a 32-bit TID, a unique 64-bit TID for authentication and next-generation serialization applications, a 128-bit EPC memory bank, and 128-bit user memory for distributed data applications. It also supports read/write password protection, preventing unauthorized viewing or modification of tag data. Typical applications for ALN-9740 include, but are not limited to, asset management, race timing, clothing hang tags, luggage tags, shipping labels, pallet signage, and file folder labels.



Features & Specifications:

• Designed to comply with EPCglobal Gen 2 (V 1.2.0) and ISO/IEC 18000-6C standards.
• Operates globally within RFID UHF frequencies (840-960 MHz).
• Pre-programmed with a unique, unchangeable 64-bit serial number.
• User memory can be permanently locked (Perma-Lock) and protected with a password in the 32-bit block.
• Low-power operation for both reading and programming.
• Dynamic authentication technology for anti-counterfeit and anti-cloning capabilities.
• Outstanding read range of up to 11 meters with the appropriate antenna.



Why Buy This Tag?

With its Higgs-4 core, the Squiggle tag offers next-generation performance and a rich feature set, yet is fully optimized for high-volume enterprise, retail, and apparel applications. Its global compatibility and exceptional read range make it the ideal choice for businesses looking for an effective, reliable RFID solution.



Beetech’s Difference:

With 12 years of experience in the AutoID field (including barcode, RFID, and other automatic identification technologies), Beetech is a leading consulting and design firm in Vietnam, providing smart device and solution delivery. Our highly skilled engineering team will become an extension of your team, deeply understanding your application and developing precise, tailored solutions. All of our products are supported by complete lifecycle management, ensuring long-term sustainability and effectiveness.

Let Beetech be your reliable partner in building and upgrading intelligent access control systems, delivering exceptional value to your business!
